Pymeter ZFX-W1412 Microcomputer Digital Temperature Controller Digital Display Temperature Controller High Precision 0.1 Control
$8.90 – $10.90

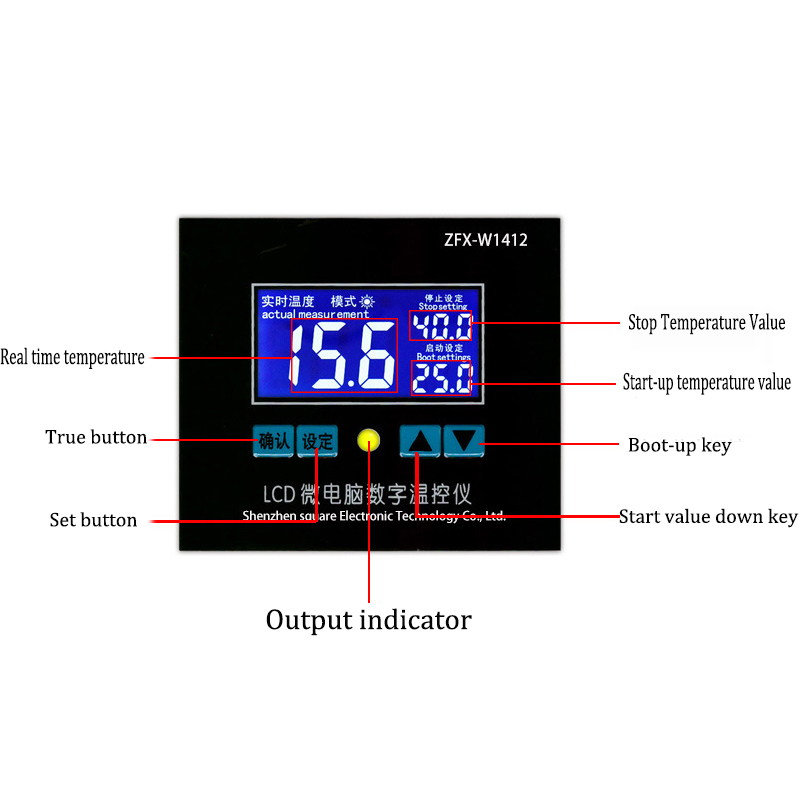

Product interface can simultaneously display real-time temperature and set value, set the way is very simple
Very suitable for chassis cabinets, instruments and other occasions
- Description
- Size Guide
- Additional information
- Reviews (1)
Description
Description
Feature:
Product interface can simultaneously display real-time temperature and set value, set the way is very simple
Very suitable for chassis cabinets, instruments and other occasions
Specifications:
Product Name: LCD microcomputer temperature controller
Model: W1412
Main features: temperature control
Measuring range: -40 ~ 105 ℃
Measurement input: NTC10K L = 1 meter
Input Power: DC 12V / AC 220V (optional)
Output Type: Relay Output
Product Size: 92 * 80mm
Hole size: 77 * 70mm
Code table:
Display LLL: Temperature probe is not plugged in
Display HHH: Beyond the measuring range Or Temperature line short circuit
Display ADJ: Can be calibrated temperature, long press the set button for 3 seconds, upper right corner of the screen ADJ, by up and down button to correct the temperature
Notice:
A. 12V Product and 220V Product main difference:
1. 12V without transformer, 220V with transformer.
2. In addition to the different voltage, the same wiring
B. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
C. Please allow 1-3mm slight deviation due to manual measurement. Thank you!
Package include:
1 x W1412 Temperature Controller
